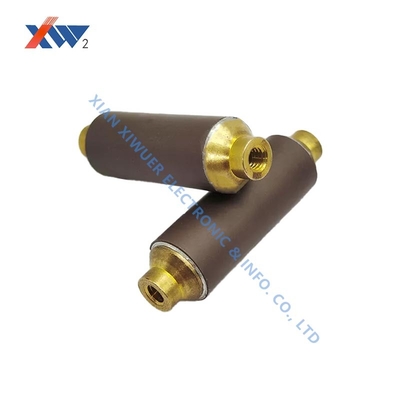

High voltage ceramic capacitor core rod 12kv 125pF

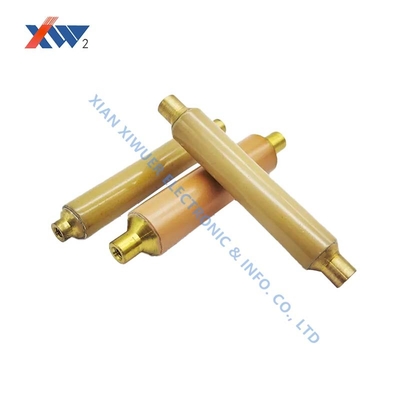

  • High voltage ceramic capacitor core rod 12kv 125pF

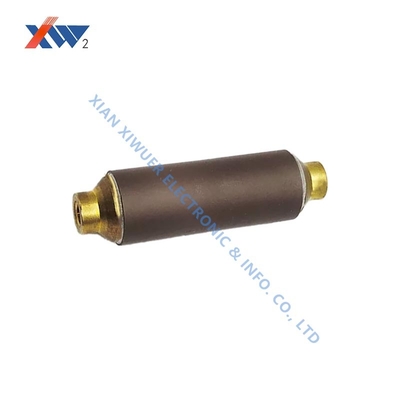

  • High voltage ceramic capacitor core rod 12kv 125pF
  • High voltage ceramic capacitor core rod 12kv 125pF
Place of Origin XIAN, CHINA
Nama merek XIWUER
Sertifikasi ISO9001,ISO14001,ISO45001
Model Number 12kv-125pF
Minimum Order Quantity 1
Harga dapat dinegosiasikan
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Rated Voltage 12kVAC Nominal Capacitance(pF) 125
Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage1V+0.2V 110~140 Withstand Voltage(In the insulating oil) 52kVAC/5min
Partial Discharge 13.2kVAC≤10pC Lightning Impulse kV1.2/5μs 75
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
High Voltage Ceramic Capacitor Core Rod 12kV 125pF
Product Specifications
Attribute Value
Rated Voltage 12kVAC
Nominal Capacitance (pF) 125
Nominal Capacitance Range
Test Frequency 1kHz±20%
Test Voltage: 1V±0.2V		 110~140
Withstand Voltage (In insulating oil) 52kVAC/5min
Partial Discharge 13.2kVAC ≤10pC
Lightning Impulse kV 1.2/5μs 75
Product Description

This high voltage ceramic capacitor core rod is designed for use in 3.6kV to 40.5kV high voltage presence indicating devices.

Key Features
  • Rated Voltage: 12kVAC
  • Nominal Capacitance: 125pF
  • Capacitance Range: 110~140pF at test frequency 1kHz±20% with test voltage 1V±0.2V
  • Withstands 52kVAC for 5 minutes in insulating oil
  • Partial discharge ≤10pC at 13.2kVAC
  • Lightning impulse withstand: 75kV (1.2/5μs)
Important Notes

Partial discharge should not exceed 5pC at 1.1 times rated voltage unless otherwise specified.

Complies with standards DL/T538-2006 (High Voltage Presence Indication Device) and JB/T10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment).

Custom dimensions available upon request.

Special care required: Protect from damage, moisture, and contamination.

For installations below 100 meters or in high altitude areas, please specify in order notes.
