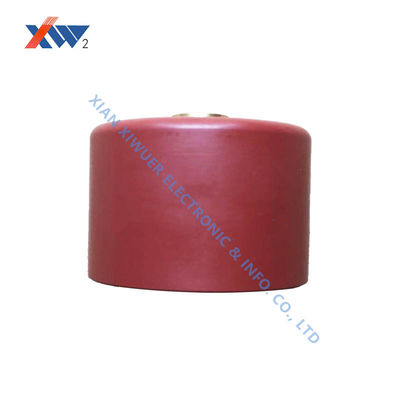

40kV 10000pF High Voltage Ceramic Capacitor 80x22mm

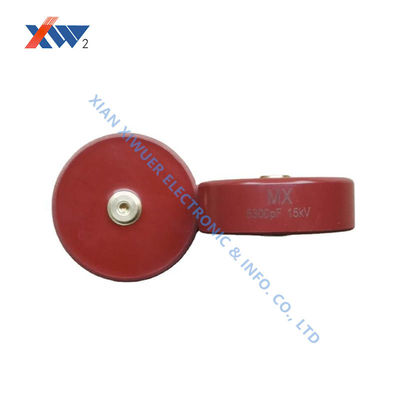

  • 40kV 10000pF High Voltage Ceramic Capacitor 80x22mm

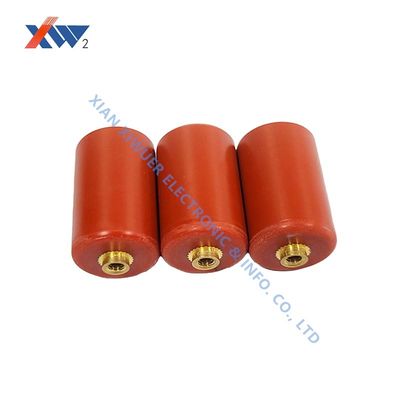

  • 40kV 10000pF High Voltage Ceramic Capacitor 80x22mm
  • 40kV 10000pF High Voltage Ceramic Capacitor 80x22mm
Tempat asal XIAN, SHANNXI CHINA
Nama merek XIWUER
Sertifikasi ISO9001,ISO14001,OHSAS18001
Nomor model 40KV-10000pf
Kuantitas min Order 1 buah
Harga dapat dinegosiasikan
Kemasan rincian Karton
Waktu pengiriman 10-15 hari
Syarat-syarat pembayaran L/c, t/t
Menyediakan kemampuan 4.000.000 buah setahun
Detail produk
Menghilangnya ≦0,0040 menahan tegangan 1.5ur ● 1 menit
Resistensi isolasi ≧ 1.0 × 105mΩ Dimensi (mm) D: 80 | H: 22 | L: 26 | D: 16 | G: 5
Menyoroti

40kV high voltage ceramic capacitor

,

10000pF ceramic capacitor 80x22mm

,

high voltage capacitor with warranty
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
40kV 10000pF High Voltage Doorknob Capacitor
Product Overview

Ultra-high voltage ceramic capacitors are essential components for specialized industrial applications, offering high withstand voltage, low loss, and exceptional performance in high peak current and rapid pulse discharge scenarios.

40kV 10000pF High Voltage Ceramic Capacitor 80x22mm 0
Key Applications
  • Pulse power and laser equipment
  • Medical imaging systems
  • Industrial processing machinery
  • Power transmission and energy infrastructure
  • Scientific research and specialized industrial applications
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Selection Guidelines

High-voltage ceramic capacitors require careful selection and handling. Consider these critical factors:

  • Voltage Margin: Operating voltage must be significantly below rated voltage, accounting for peak pulse conditions
  • Thermal Management: Proper heat dissipation is essential for high-frequency/high-current applications
  • Frequency Characteristics: Performance varies by dielectric material - consult detailed specifications
  • Safety Compliance: All design, installation and operation must follow strict safety regulations by qualified personnel
