High Voltage Doorknob Capacitor 20kV-10000pF: Build your full life cycle cost advantage

  • High Voltage Doorknob Capacitor 20kV-10000pF: Build your full life cycle cost advantage
  • High Voltage Doorknob Capacitor 20kV-10000pF: Build your full life cycle cost advantage
  • High Voltage Doorknob Capacitor 20kV-10000pF: Build your full life cycle cost advantage
Tempat asal XIAN, SHANNXI CHINA
Nama merek XIWUER
Sertifikasi ISO9001,ISO14001,OHSAS18001
Nomor model CT8-1-20KV-10000PF
Kuantitas min Order 1 buah
Harga dapat dinegosiasikan
Kemasan rincian Karton
Waktu pengiriman 10-15 hari
Syarat-syarat pembayaran L/c, t/t
Menyediakan kemampuan 4.000.000 buah setahun

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Menyoroti

Low Dissipation High Voltage Doorknob Capacitor

,

High Withstanding Voltage HV Ceramic Capacitor

,

High Insulation Resistance Doorknob Capacitor
Tinggalkan pesan
Deskripsi Produk

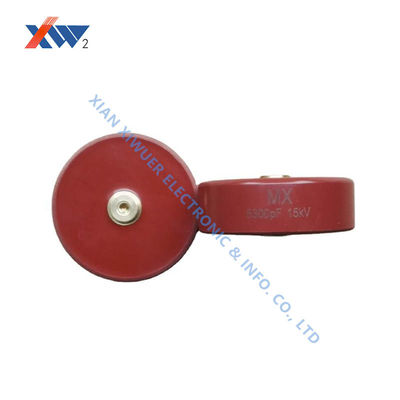

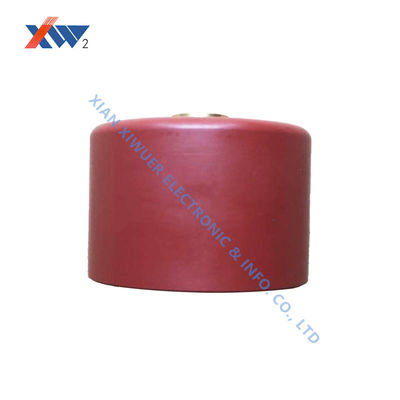

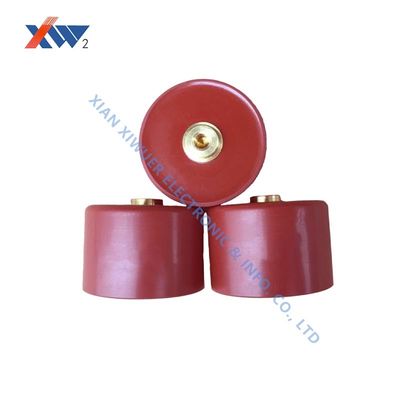

High Voltage Doorknob Capacitors CT8-1-20kV-10000pF
Build your full life cycle cost advantage
Product Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Lifecycle Cost Advantage with High-Voltage Ceramic Capacitors

In industrial applications, component procurement costs represent only a fraction of the total expense. The true cost lies in equipment efficiency, stability, maintenance cycles, and overall brand reputation. Our high-voltage ceramic capacitors are designed to enhance your product's competitiveness throughout its entire lifecycle.

From Cost to Value: Our Core Philosophy

We define high-quality capacitors as components that deliver consistent, reliable performance throughout your equipment's operational life, generating benefits that far exceed their initial price.

Key Benefits of Our High-Voltage Ceramic Capacitors
  • Improved Energy Efficiency: Our low-dissipation-factor capacitors reduce power supply energy loss, potentially saving significant electricity costs for large-scale industrial operations.
  • Maximized Equipment Uptime: Rigorous testing and quality control result in failure rates well below industry averages, reducing unplanned downtime.
  • Simplified System Design: We offer flexible solutions from standard products to fully customized designs, accelerating your product development cycle.
  • Comprehensive Technical Partnership: Support throughout the project lifecycle, from design to mass production and after-sales service.
Technical Support Throughout Your Project
  • Design Phase: SPICE models, application notes, and initial selection recommendations
  • Testing and Validation: Assistance with lifespan assessment and failure analysis
  • Mass Production and After-Sales: Stable supply chain support and rapid technical response
Case Study: Proven Results

A leading environmental protection equipment manufacturer implemented our high-voltage ceramic capacitors in their new electrostatic precipitator power modules, achieving:

  • 1.8% increase in full-load efficiency
  • Zero failures during two years of field testing
  • Premium pricing in tenders due to improved energy efficiency and reliability
