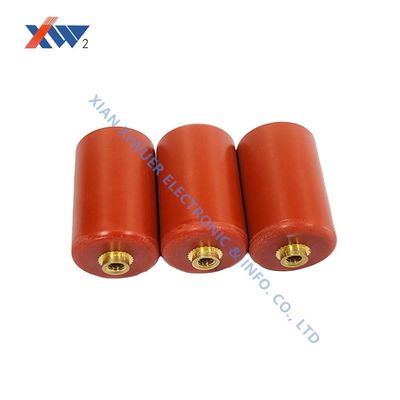

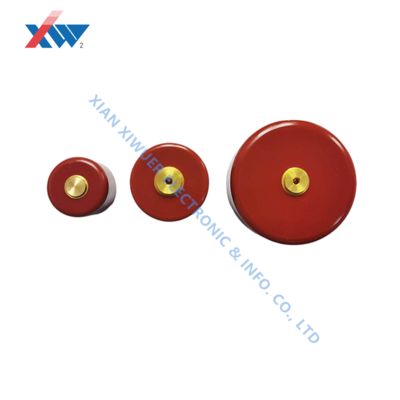

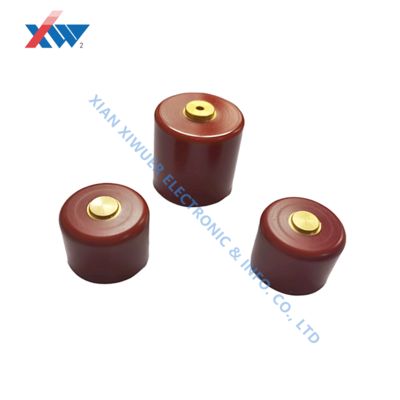

High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment

  • High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment
  • High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment
  • High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment
Tempat asal XIAN, SHANNXI CHINA
Nama merek XIWUER
Sertifikasi ISO9001,ISO14001,OHSAS18001
Nomor model CT8-1-20KV-18000pF
Kuantitas min Order 1 buah
Harga dapat dinegosiasikan
Kemasan rincian Karton
Waktu pengiriman 10-15 hari
Syarat-syarat pembayaran L/c, t/t
Menyediakan kemampuan 4.000.000 buah setahun

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Menyoroti

Low Dissipation High-Voltage Doorknob Capacitor

,

High Withstanding Voltage HV Ceramic Capacitor

,

High Insulation Resistance High-Voltage Doorhandle Capacitor
Tinggalkan pesan
Deskripsi Produk
High-Voltage Doorhandle Capacitors for Nondestructive Testing Equipment
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
High-voltage doorhandle capacitors serve as the "heart of stability" for nondestructive testing equipment, providing the precise energy control required for X-ray testing, ultrasonic testing, and eddy current testing applications.
Nondestructive Testing Equipment Requirements
Nondestructive testing equipment demands high-voltage power supplies with:
  • Exceptional stability to prevent test signal fluctuations
  • Minimal ripple and noise for accurate test data
  • Robust shock resistance for frequent load changes
Core Functions
In high-voltage power modules, our doorhandle capacitors provide:
  • Filtering: Smooths high-frequency ripple for clean DC voltage output
  • Energy Storage: Buffers transient load changes to stabilize bus voltage
Key Advantages
  • Superior voltage stability with Class II/III ceramic dielectrics
  • Ultra-low ESR for effective high-frequency ripple filtering
  • Robust mechanical construction with screw terminals
  • Epoxy resin vacuum potting for environmental protection
Our high-voltage doorhandle capacitors provide the reliable foundation needed for precise nondestructive testing diagnostics, ensuring accurate results in demanding industrial environments.
