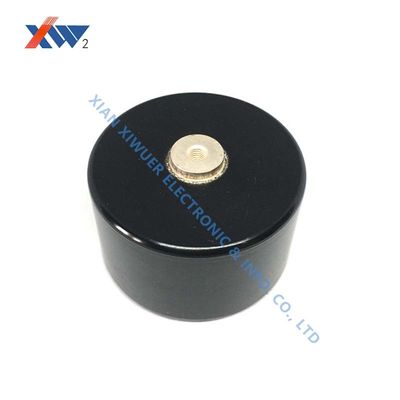

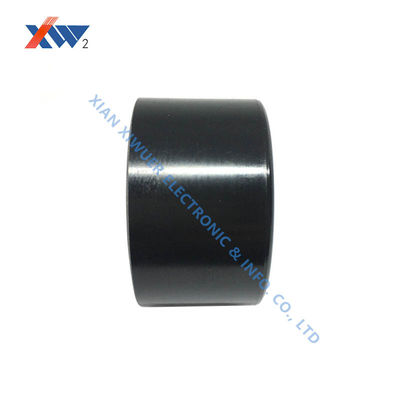

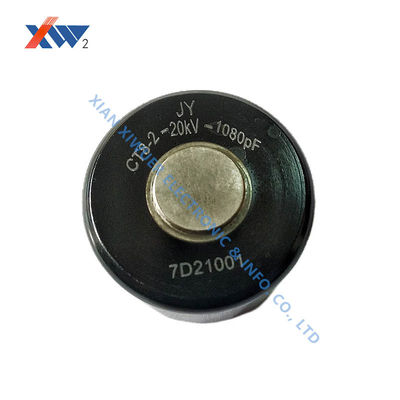

Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability

  • Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability
  • Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability
  • Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability
Tempat asal XIAN, CINA
Nama merek XIWUER
Sertifikasi ISO9001,ISO14001,ISO45001
Nomor model CT8-2-100KV-500PF
Kuantitas min Order 1 pcs
Harga dapat dinegosiasikan
Kemasan rincian Karton
Waktu pengiriman 5-7 hari
Syarat-syarat pembayaran L/c, t/t
Menyediakan kemampuan 4.000.000 buah setahun

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Menyoroti

Temperature Compensated High Voltage Doorknob Capacitor

,

Capacitance Stability HV Doorknob Capacitor

,

Precision Engineering Ceramic Doorknob Capacitor
Tinggalkan pesan
Deskripsi Produk
High Voltage Doorknob Capacitors for Precision Measurement
Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability 0
Technical Specifications
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5
Precision Measurement Performance
Capacitive voltage dividers are essential for high-voltage measurements (power frequency, pulse, and lightning impulse). Their accuracy depends on the stability and linearity of the high-voltage arm capacitance. Our high-voltage doorknob capacitors feature:
  • Temperature-compensated ceramic dielectrics
  • Capacitance change rate <±0.5%
  • Voltage coefficient deviation ≤±0.2% (-40°C to +85°C)
  • Long-term stability for voltage dividers
  • Low loss (tanδ ≤ 0.001)
  • High insulation resistance (≥105 MΩ)
For example, in 500kV series resonant test equipment, the voltage divider maintains Class 0.2 accuracy (error ≤±0.2%) in the 150kV-300kV range. Our capacitors effectively suppress measurement errors caused by DC leakage current and dielectric polarization.
Application Examples
Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability 1 Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability 2 Precision Engineered High Voltage Doorknob Capacitor with Temperature Compensated Ceramic for Capacitance Stability 3
