High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering

  • High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering
  • High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering
  • High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering
Tempat asal XIAN, CINA
Nama merek XIWUER
Sertifikasi ISO9001,ISO14001,ISO45001
Nomor model CT8-2-200KV-600PF
Kuantitas min Order 1 pcs
Harga dapat dinegosiasikan
Kemasan rincian Karton
Waktu pengiriman 5-7 hari
Syarat-syarat pembayaran L/c, t/t
Menyediakan kemampuan 4.000.000 buah setahun

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Menyoroti

Smart Substation Integration High Voltage Doorknob Capacitor

,

Long-Term Stability HV Ceramic Capacitor

,

EMI Protection Doorknob Capacitor
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
System Integration - The Role of Voltage Dividers in Smart Substations

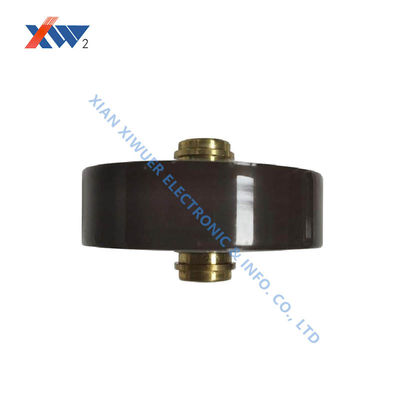

High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering 0
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5

In smart substations, capacitive voltage dividers serve not only as measurement units but also as signal sources for relay protection and metering equipment. The electromagnetic compatibility design of door handle capacitors (such as shielded electrodes and sealed packaging) protects against EMI interference caused by switching operations, outputting a pure voltage signal.

For example, in the State Grid "One-Button Sequential Control" project, voltage dividers use capacitor voltage division to obtain bus voltage. The long-term stability of the door handle capacitors (annual capacitance change <0.1%) ensures accurate timing determination of disconnector opening and closing.

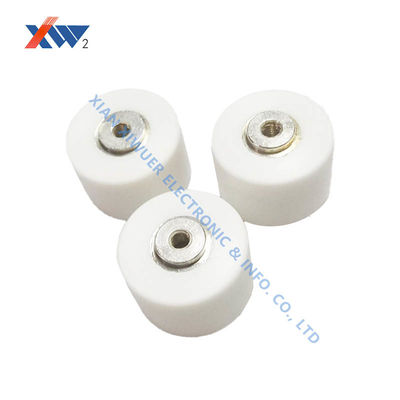

High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering 1

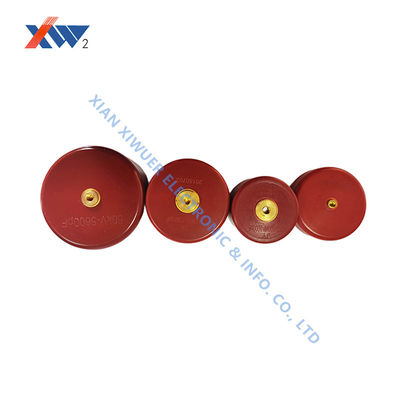

High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering 2
High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering 3
