Deskripsi Produk
High-Voltage Doorknob Capacitor for Synchrotron Radiation Source Applications

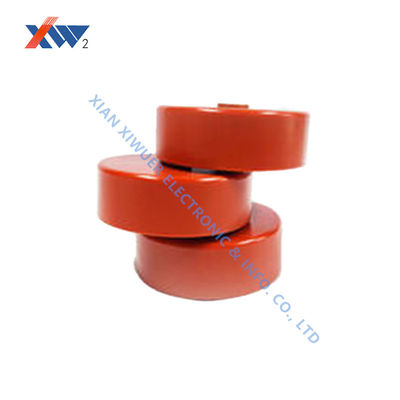

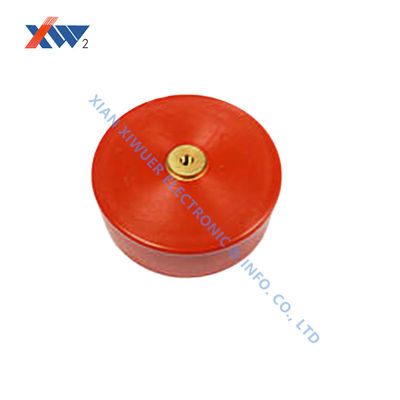

High Voltage Doorknob Capacitor for Synchrotron Radiation Source with DC Link Support and Pulse Energy Buffering 0
Core Functions and Applications

In synchrotron radiation source high-voltage power supply systems, doorknob capacitors perform two critical functions:

  • DC Link Support and Filtering: Positioned at switching power supply outputs, they form the core of π-type or LC filter networks. Their superior high-frequency response and low equivalent series resistance effectively suppress high-frequency ripple, delivering smooth DC high voltage for electron guns and accelerating cavities.
  • Pulse Energy Buffering and Release: In pulsed magnet power supplies (including beam kicker and correction magnet power supplies), these capacitors serve as instantaneous energy reservoirs. They charge and discharge within milliseconds or microseconds, delivering high-peak pulse currents to ensure fast magnetic field waveform rise times and precise flat tops for accurate electron injection and extraction.
Technical Specifications
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5
