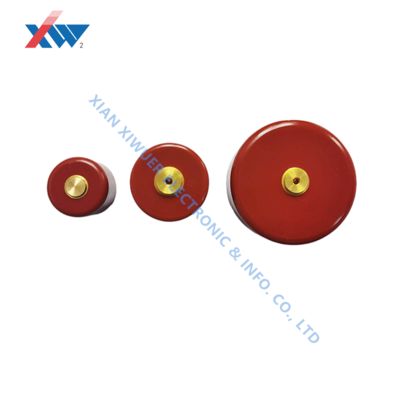

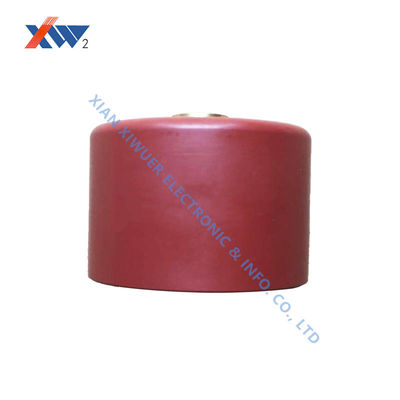

Non-standard options: Provide customized high-voltage capacitor solutions for your synchrotron radiation light source project

  • Non-standard options: Provide customized high-voltage capacitor solutions for your synchrotron radiation light source project
  • Non-standard options: Provide customized high-voltage capacitor solutions for your synchrotron radiation light source project
Tempat asal XIAN, CINA
Nama merek XIWUER
Sertifikasi ISO9001,ISO14001,ISO45001
Dokumen High Voltage Ceramic Capaci...25.pdf
Kuantitas min Order 1 pcs
Harga dapat dinegosiasikan
Kemasan rincian KARTON
Waktu pengiriman 5-7 hari
Syarat-syarat pembayaran L/c, t/t
Menyediakan kemampuan 4.000.000 buah setahun

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Menghilangnya ≦0,0040 menahan tegangan 1.5ur ● 1 menit
Resistensi isolasi ≧ 1.0 × 105mΩ
Menyoroti

custom high-voltage capacitors

,

synchrotron radiation capacitors

,

high-voltage doorknob capacitors
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk

Non-standard options: Provide customized high-voltage capacitor solutions for your synchrotron radiation light source project
Why do synchrotron radiation sources need customized capacitors?

Special Voltage and Capacitance Requirements: Electron gun acceleration voltages and specific pulse magnet applications may require unconventional voltage/capacitance combinations (e.g., voltages above 50kV, or specific capacitance values ​​to achieve precise LC resonant frequencies).

Extreme Spatial Layout Requirements: To optimize system layout and minimize loop inductance, capacitor dimensions, terminal location, and orientation may require specialized design.

Extreme Electrical Performance Requirements: To achieve faster pulse response or lower losses, capacitors must have ESR and ESL below the lower limits of existing standards.

Special Materials and Processes Requirements: To meet the requirements for use in ultra-high vacuum environments or to avoid interference from strong magnetic fields, specialized low-outgassing materials and non-magnetic/low-magnetic materials are required.

Drawing:
Non-standard options: Provide customized high-voltage capacitor solutions for your synchrotron radiation light source project 0

Parameters:

No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5
