FD2/FD10 255VAC Surge Protective Device with 20kA Rated and 40kA Maximum Inrush Current for N-PE Protection

  • FD2/FD10 255VAC Surge Protective Device with 20kA Rated and 40kA Maximum Inrush Current for N-PE Protection
  • FD2/FD10 255VAC Surge Protective Device with 20kA Rated and 40kA Maximum Inrush Current for N-PE Protection
Tempat asal XIAN, CINA
Nama merek Qing Zhu
Sertifikasi UL,TUV,CCC,ROHS
Nomor model FD2-255/20
Kuantitas min Order 1 Satuan
Harga USD, Negotiable, unit
Kemasan rincian karton
Waktu pengiriman 5-7 hari
Syarat-syarat pembayaran L/C,T/T
Menyediakan kemampuan 4,000,000 unit/tahun

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Maximum continuous operating voltage Uc(AC) 255V Application N-PE protection of 220V/380V AC power system
Alarm indication remote alarm available Selling Units Single item
Rated inrush current In(8/20 μs) 20kA Maximum inrush current Imax(8/20μs) 40kA
Menyoroti

255VAC Surge Protective Device

,

20kA Rated Inrush Current Surge Arrester

,

40kA Maximum Inrush Current Overvoltage Protector
Tinggalkan pesan
Deskripsi Produk

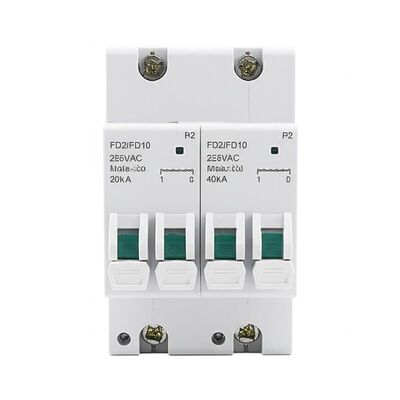

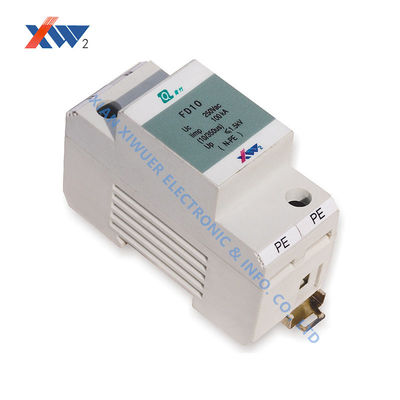

FD2/FD10 Power Surge Protective Device Single Phase Model 255VAC Surge Arrester
Product Description

FD2/FD10 power surge protective device single phase model 255VAC Surge Arrester provides reliable protection for electrical systems against power surges.

Key Features
  • Large energy absorption ability with low limit voltage
  • Fast response speed (≤25ns)
  • Hot state module replacement capability (FD2 model)
Application

FD2 and FD10 overvoltage protectors are designed for N-PE protection in 220V/380V AC power systems.

Technical Parameters
Model No. FD2-255/20 FD2-255/40 FD2-255/60 FD10-255/80 FD10-255/100
Maximum continuous operating voltage Uc(AC) 255V 250V
Rated inrush current In(8/20 μs) 20kA 40kA 60kA 80kA 100kA
Maximum inrush current Imax(8/20μs) 40kA 60kA 100kA
Lightning impulse current (10/350μs) 80kA 100kA
Protection level Usn 1.5kV 1.8kV 1.8kV 1.5kV 1.5kV
Response time 100ns
Dimensions (mm) 18*105*67 30*105*67 35*90*67 35*90*67 35*90*67
Installation method For use with 35mm standard rail
Alarm indication With remote arm available With remote alarm available
Company Overview

Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company established in 1976 with:

  • Registered capital: CNY 101.465 million (USD 15.85 million)
  • Total assets: CNY 315 million (USD 49.22 million)
  • 460 employees with annual sales of CNY 280 million (USD 43.75 million)
  • Four production bases covering 43,052 m² with construction area over 50,000 m²
  • Highly qualified technical team including 8 master's degree holders and 80 senior engineers
Main Products
  • Smart Embedded Epoxy Pole
  • Integrated Instrument Transformer
  • Capacitive Voltage Divider
  • Rogowski Coil
  • High Voltage Capacitor Rod
  • High Voltage Film Capacitor
  • High Voltage Resistor
  • Primary and Secondary Integrated Intelligent assembly with voltage/current measurement, protection, temperature monitoring, and power supply functions
  • Medium-High Voltage components/parts/assembly
  • Surge Protective Device for Power Supply System
  • Chips for lightning devices
  • Zinc Oxide Varistor and Thermistor
Major Customers

ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric, etc.

Quality Certifications

The company maintains ISO 9001, ISO 14001, and ISO 45001 certifications with products meeting UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH standards.
