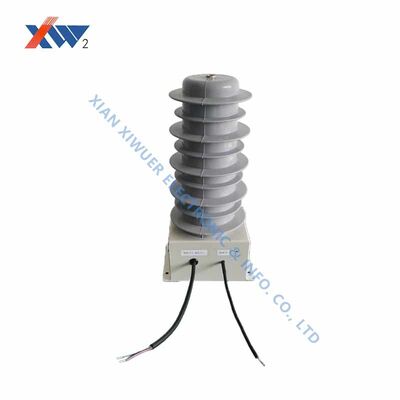

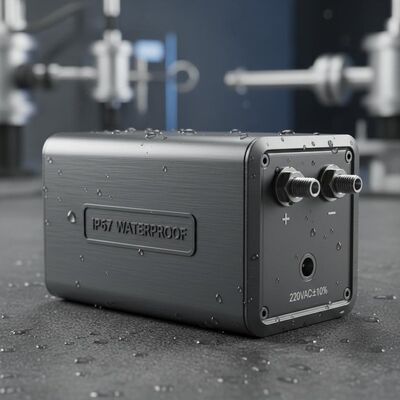

High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting

  • High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting
Tempat asal Xian-Cina
Nama merek XIWUER
Sertifikasi ISO
Nomor model LEDZW-12
Kuantitas min Order 1 buah
Harga dapat dinegosiasikan
Kemasan rincian Karton
Waktu pengiriman 10-15 Hari
Syarat-syarat pembayaran L/C,T/T
Menyediakan kemampuan 1.000.000 unit per tahun
Detail produk
Menyoroti

220VAC±10% Output Voltage High Voltage Capacitor Power Supply

,

IP67 Waterproof Level HV Ceramic Capacitor

,

Insulating Resin Potting Power Supply Device
Tinggalkan pesan
Deskripsi Produk
High Voltage Capacitor Power Supply - LEDZW-12
Product Overview

The power supply is a power supply device that directly connects the high voltage end to the device and obtains electrical energy from the output end. It is mainly composed of a capacitor unit and an electromagnetic unit, wherein the electromagnetic unit includes an intermediate transformer and a harmonic elimination circuit.

Electrical Performance Index
Serial Number Categories Unit Index
1 Output Voltage V 220VAC±10%
2 Output Power W 10
3 Working Temperature ºC -40~+70
4 Capacitor Dimension mm Φ129*330
5 Main Size mm 186*135*75
6 Heat Dissipation Structure - Insulating Resin Potting
7 Package Structure - Plastic & Metal Shell
8 Waterproof Level - IP67
Technical Principle

The high-voltage capacitor energy-harvesting device consists of a capacitor module and a conversion module. It obtains electrical energy through capacitor voltage division, and the conversion module steps down and stabilizes the voltage for output. For AC output, the conversion module includes a transformer, voltage stabilization, and protection units; for DC output, it also includes rectification and filtering units, and different rectification circuits can be selected according to requirements.
