Avoiding Electromagnetic Resonance—Capacitive Voltage Divider Power Supply Replacing PTs

  • Avoiding Electromagnetic Resonance—Capacitive Voltage Divider Power Supply Replacing PTs
  • Avoiding Electromagnetic Resonance—Capacitive Voltage Divider Power Supply Replacing PTs
Tempat asal Xian-Cina
Nama merek XIWUER
Sertifikasi ISO
Nomor model LEDZW-12
Kuantitas min Order 1 buah
Harga dapat dinegosiasikan
Kemasan rincian Karton
Waktu pengiriman 10-15 Hari
Syarat-syarat pembayaran L/C,T/T
Menyediakan kemampuan 1.000.000 unit per tahun
Detail produk
Menyoroti

220VAC±10% Output Voltage Capacitive Voltage Divider Power Supply

,

IP67 Waterproof Level High Voltage Capacitor Power Supply

,

Insulating Resin Potting HV Capacitor Power Supply
Tinggalkan pesan
Deskripsi Produk

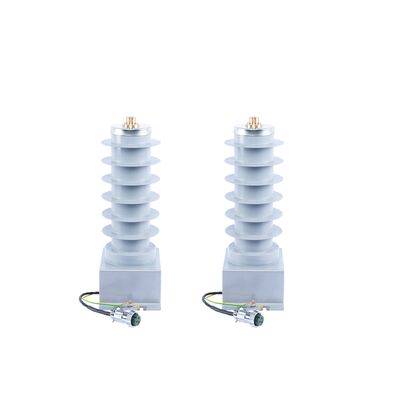

Avoiding Electromagnetic Resonance—Capacitive Voltage Divider Power Supply Replacing PTs
Product Description
Avoiding Electromagnetic Resonance--Capacitive Voltage Divider Power Supply Replacing PTs
Electrical Performance Index
Serial Number Categories Unit Index
1 Output Voltage V 220VAC±10%
2 Output Power W 10
3 Working Temperature ºC -40~+70
4 Capacitor Dimension mm Φ129*330
5 Main Size mm 186*135*75
6 Heat Dissipation Structure - Insulating Resin Potting
7 Package Structure - Plastic & Metal Shell
8 Waterproof Level - IP67
Working Principle
The circuit block diagram is shown in the figure below. In the figure, the capacitor C is the high-voltage power-taking capacitor, and T is the power-taking transformer. These two components constitute the C-L power-taking mode. The advantage of this method is that the power is large and the overall volume is small.
Economic Benefits and Social Significance
Social benefits are reflected in improving power grid safety, promoting intelligent development, reducing operation and maintenance costs, and contributing to energy conservation and environmental protection.
